Slim®Roll

Design and convenience for the registration of users

– Fingerprint capturing device.
– Used for the registration and identification of users.
– Connection through USB cable.

Overview

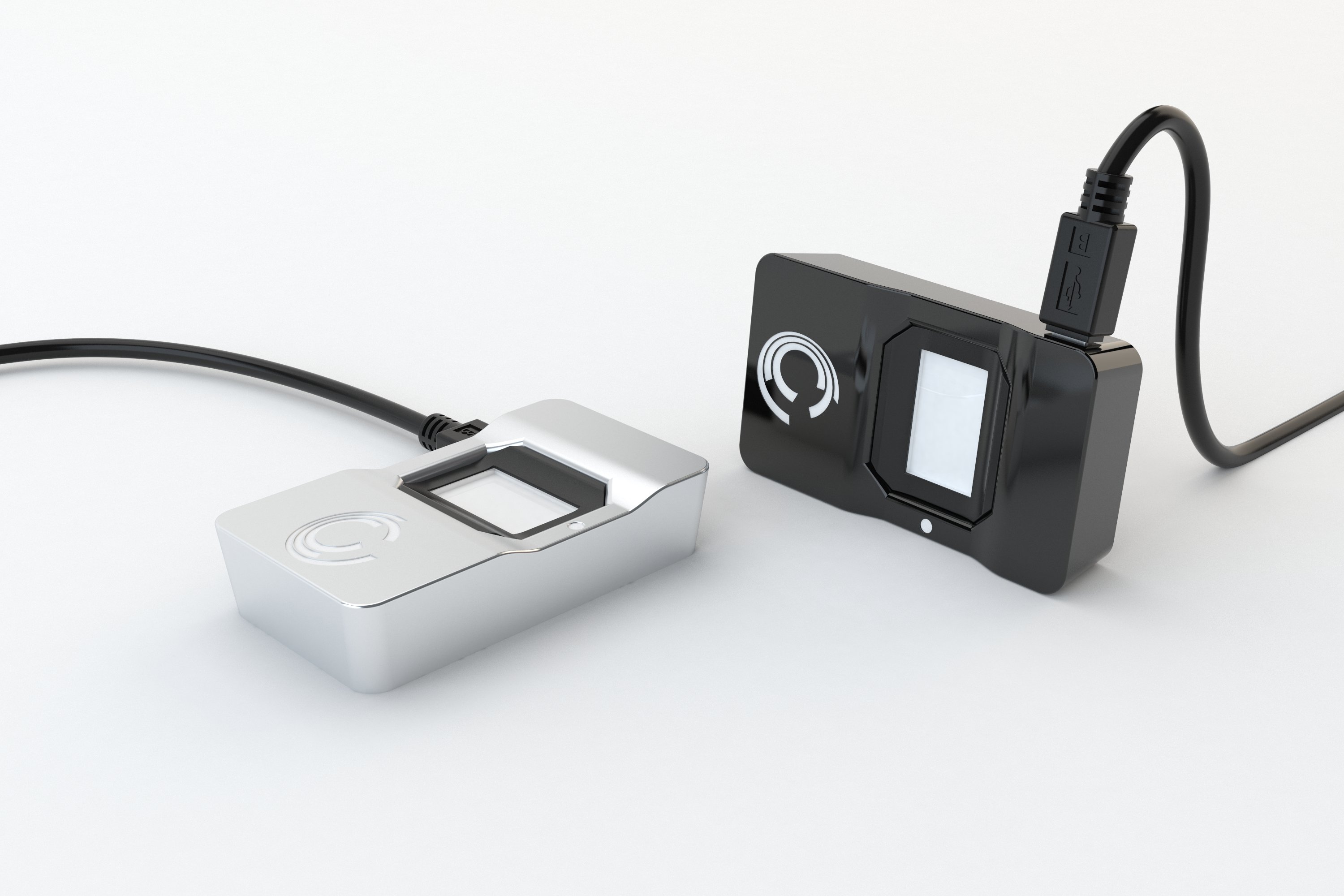

Slim®Roll is a biometric device which, connected to a computer with software allow new users to be enrolled in the system.

The devices do not record a fingerprint image, they merely generate a unique biometric pattern which, as data of a personal nature, is associated with a user. It is unidirectional, in other words, it does not allow a reconstruction of a fingerprint image via the biometric pattern extracted.

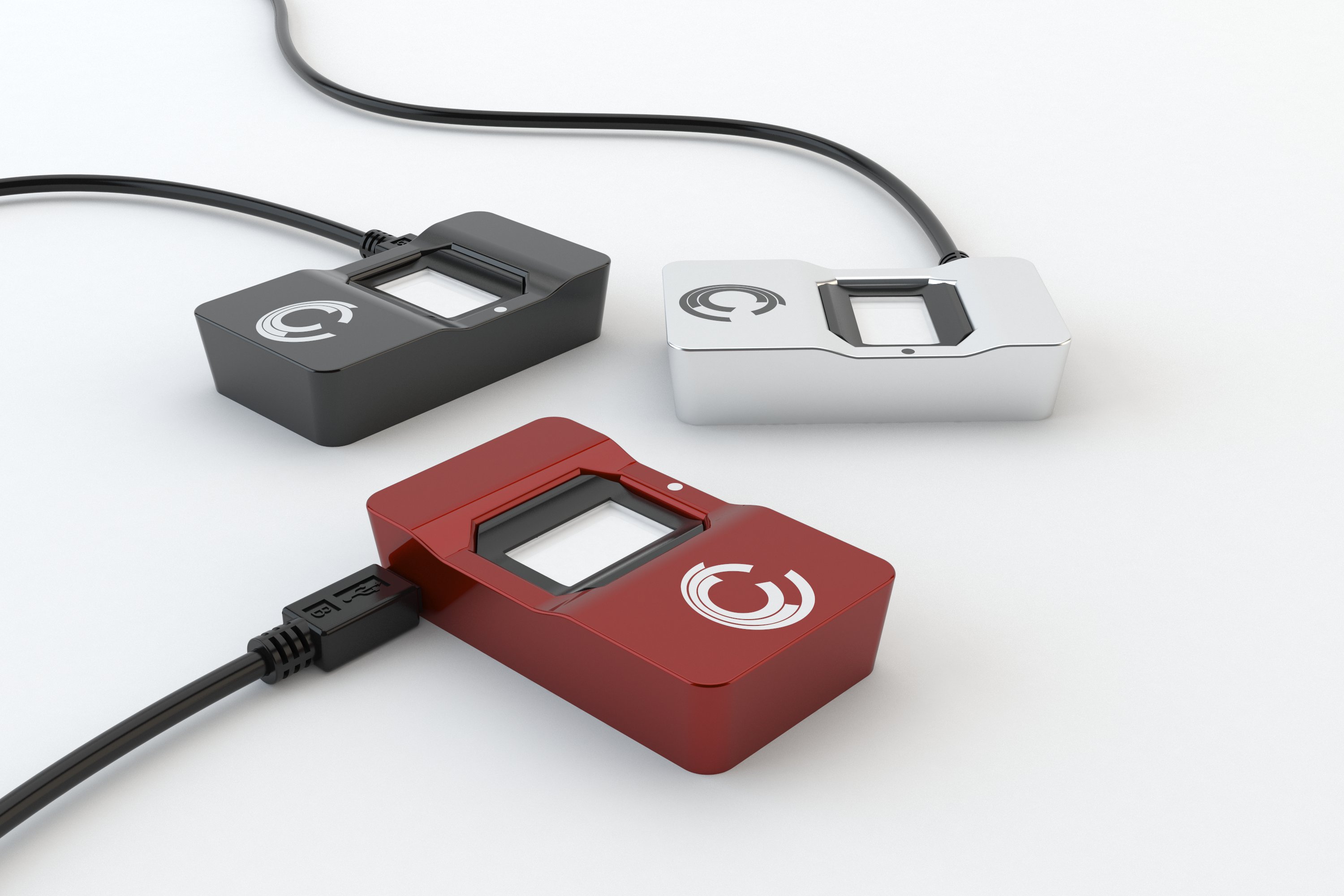

Slim®Roll is an esthetic device which can be integrated into any space, available in different chromatic finishes.

MAIN CHARACTERISTICS

TECHNICAL FEATURES

– Attractive design available in black and silver aluminium.
– Power supply comes from the data USB.
– High speed and quality recording of the biometric pattern

Installation

– Desktop

Biometric features

– Optical sensor
– Area of the sensor: 18 x 22 mm.
– Resolution: 500dpi.
– Authentication time (1:1): Less than 1 second (standard time).
– Identification time (1:500 people): 1.5 seconds.
– FAR <=0.00001%.

Environmental characteristics

– Operating temperature: -10ºC to 45ºC.
– Storage temperature: -20ºC to 70ºC.
– Relative humidity: 20% to 80%.

Network and communications

– USB communication connected to PC
