Inside®WBLS

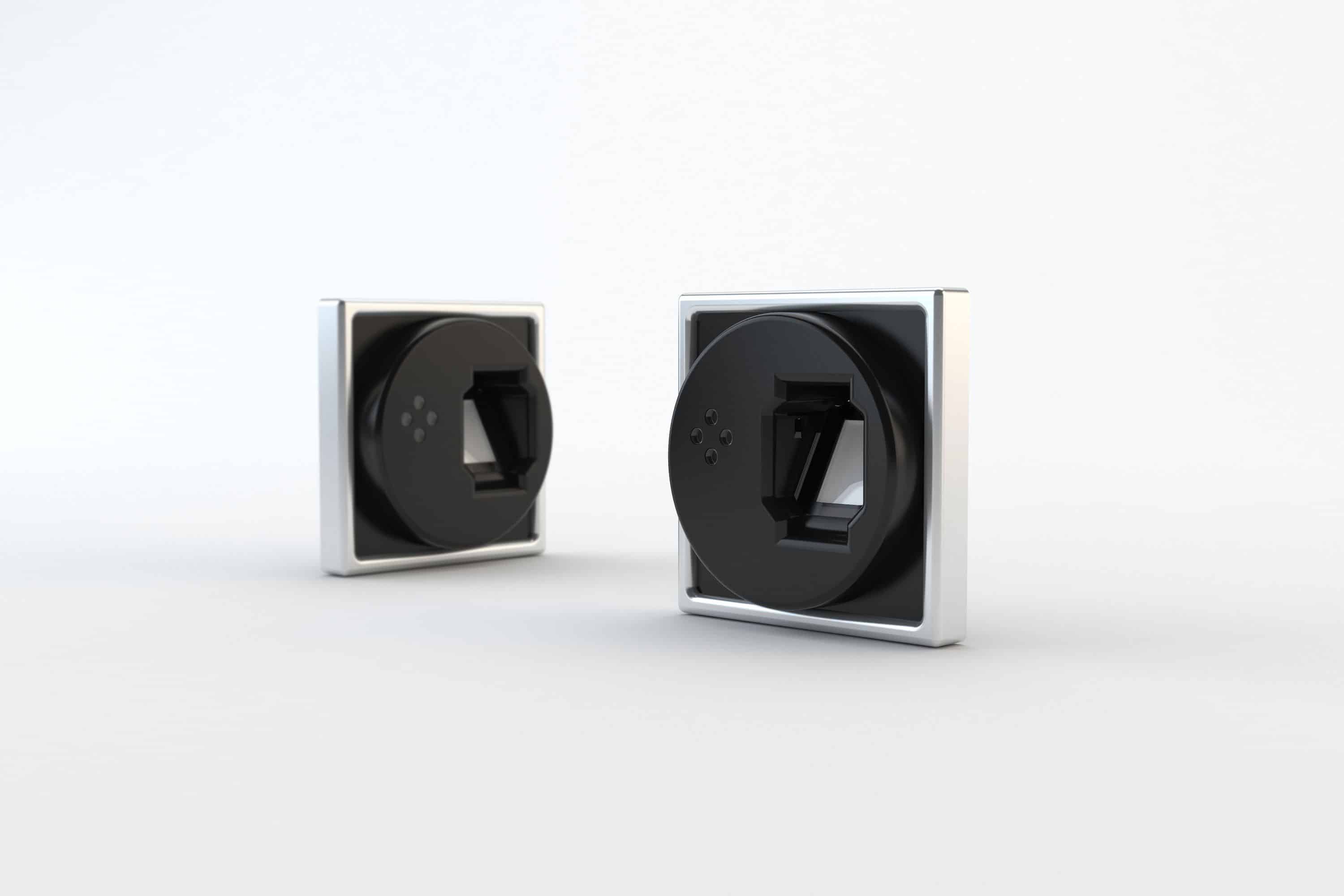

Wall embedded wireless biometric reader

– Biometric access control device to be embedded.
– Embedded in universal mechanism box, easy installation.
– WBLS® wireless communication (Wireless biometric locking system®).

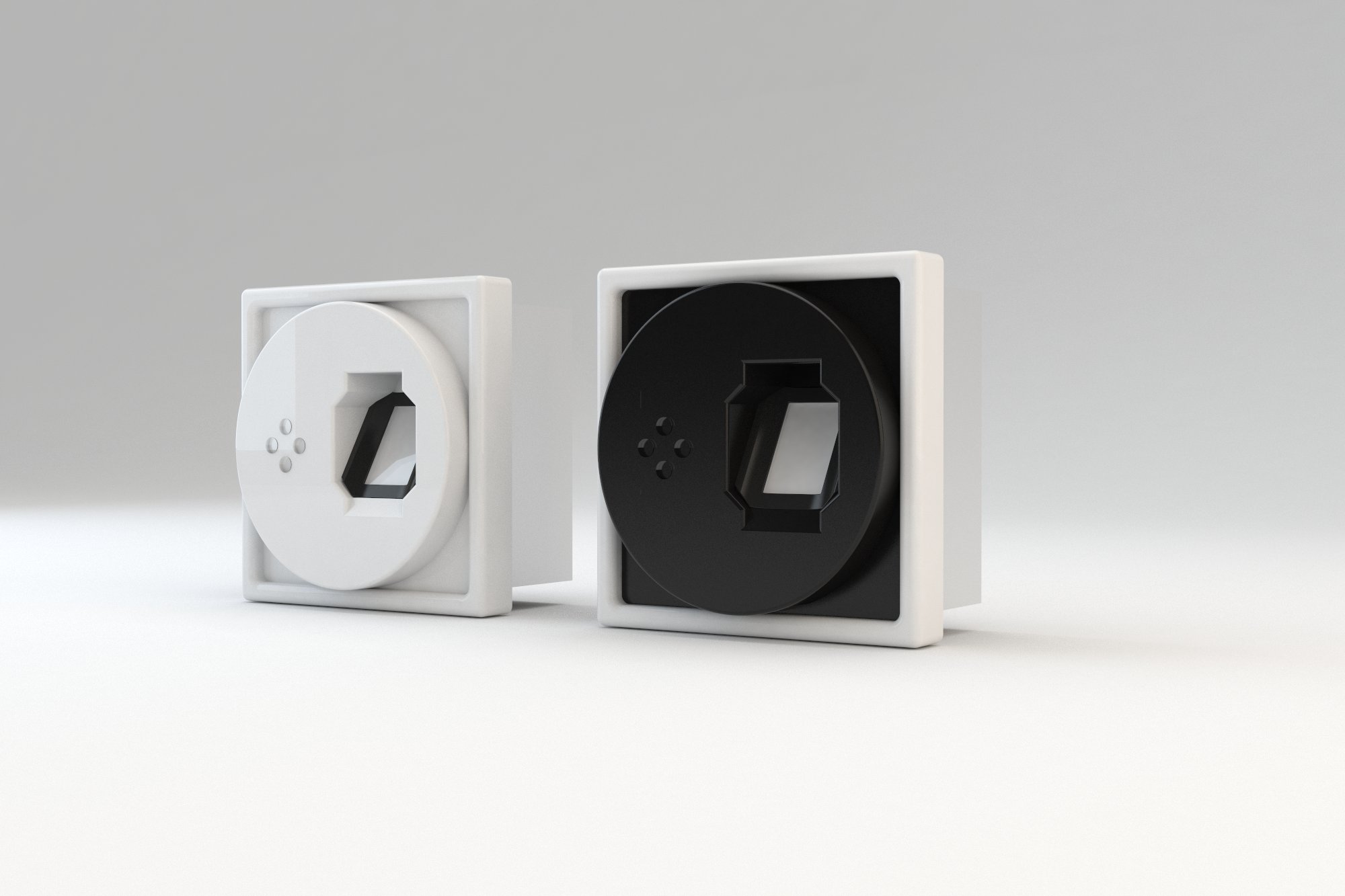

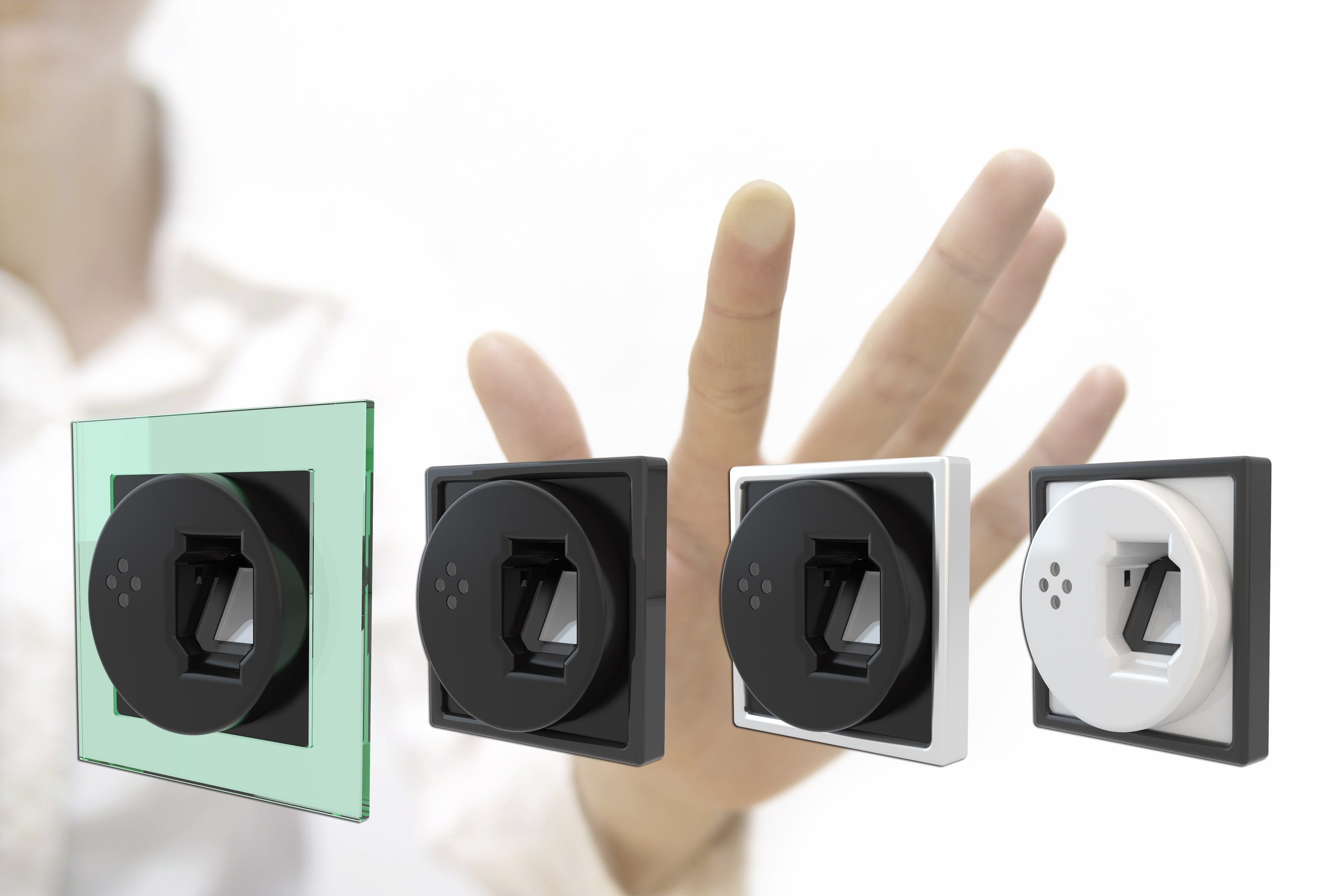

– Exchangeable frames in different colours (series LS, LS PLUS and FD by JUNG).

Overview

Inside® WBLS is a wireless biometric device for access control. It provides quick and easy access of users to different rooms through fingerprint identification. Inside® WBLS is designed for integrated mounting and through relay allows the control of electronic locks, automatic doors, parking barriers, turnstiles and others.

Inside® WBLS is connecting to the Biodit Management Software through the Gateway® WBLS. The used Wireless Biometric Locking System® (WLBS®) technology is based on Zigbee platform and it provides secure encrypted with 128-bit connection.

The device can control electrical locking mechanisms using its integrated swich and can use wireless communication with the rest of the network devices. It can operate ONLINE and OFFLINE.

Inside® WBLS has low consumption – the device will remain on standby and the sensor will activate when you get near it.

MAIN CHARACTERISTICS

TECHNICAL FEATURES

– Attractive design and available in different frames and colours.
– Easy installation recessed in universal box of mechanisms.
– Fingerprint biometrical identification technology.
– SELV power supply (safety extra-low voltage)
– Incorporates relay for door opener or any other activator.
– Relay operation in bistable mode or pulse mode.
– Time adjustment of the opening pulse.
– Bidirectional wireless communication between the control software
and the Inside device.
– Safety in the wireless communication in all kind of devices, coded
wireless communication with safety verifications per cyclical redundancy
codes and safety algorithms.
– Restraint fingerprint function.
– Sound warning by buzzer on access.
– Visual warning with red and green leds on access.

Opening Modes

– Identification mode (door opening after fingerprint validation).
– Access mode by time band.
– Remote opening

Information provided through control software

– Detailed reports on the locks’ activity.
– Maintenance reports.
– Online monitoring of the power supply.
– Automatic incidence messages.
– History of identification events per user.
– Access permissions per groups of users (staff or clients).
– Elimination of access on request (fingerprint deletion locally).
– Staff access follow-up.
– Open/closed door status notification (only if provided with external
sensor).

Biometric features

– Optical sensor
– Area of the sensor: 18 x 22 mm.
– Resolution: 500dpi.
– Authentication time (1:1): less than 1 second (standard time).
– Identification Time (1:500 people): 1.5 seconds.
– Maximum number of fingerprints per Inside® device: 500 (extendable
to 3000 and 5000).
– FAR <=0.00001%.

Environmental characteristics

– Operating temperature: -10ºC to 45ºC.
– Storage temperature: -20ºC to 70ºC.
– Relative humidity: 20% to 80%.

Autonomy

– Necessary power supply: 12Vdc500mA.
– Low consumption, the device will remain on standby, the sensor will
activate when you get near the device.

Interfaces

– Power supply connector. Removable terminal type connector.
– Relay output 12A 230V (NC y NA). Removable terminal type connectors.
– Digital input for external sensor. Removable terminal type connectors.

Network and communications

– WBLS Wireless communication with the rest of the network devices.
– Possibility of ONLINE and OFFLINE operation.
