Olock®WBLS

Top safety combined with high-end design

– Biometric access control lock.
– WBLS® wireless communication (Wireless biometric locking system®).
– Autonomous by battery.
– Easy installation, without any kind of building work or cabling.
– Valid for new installations or replacements.

Overview

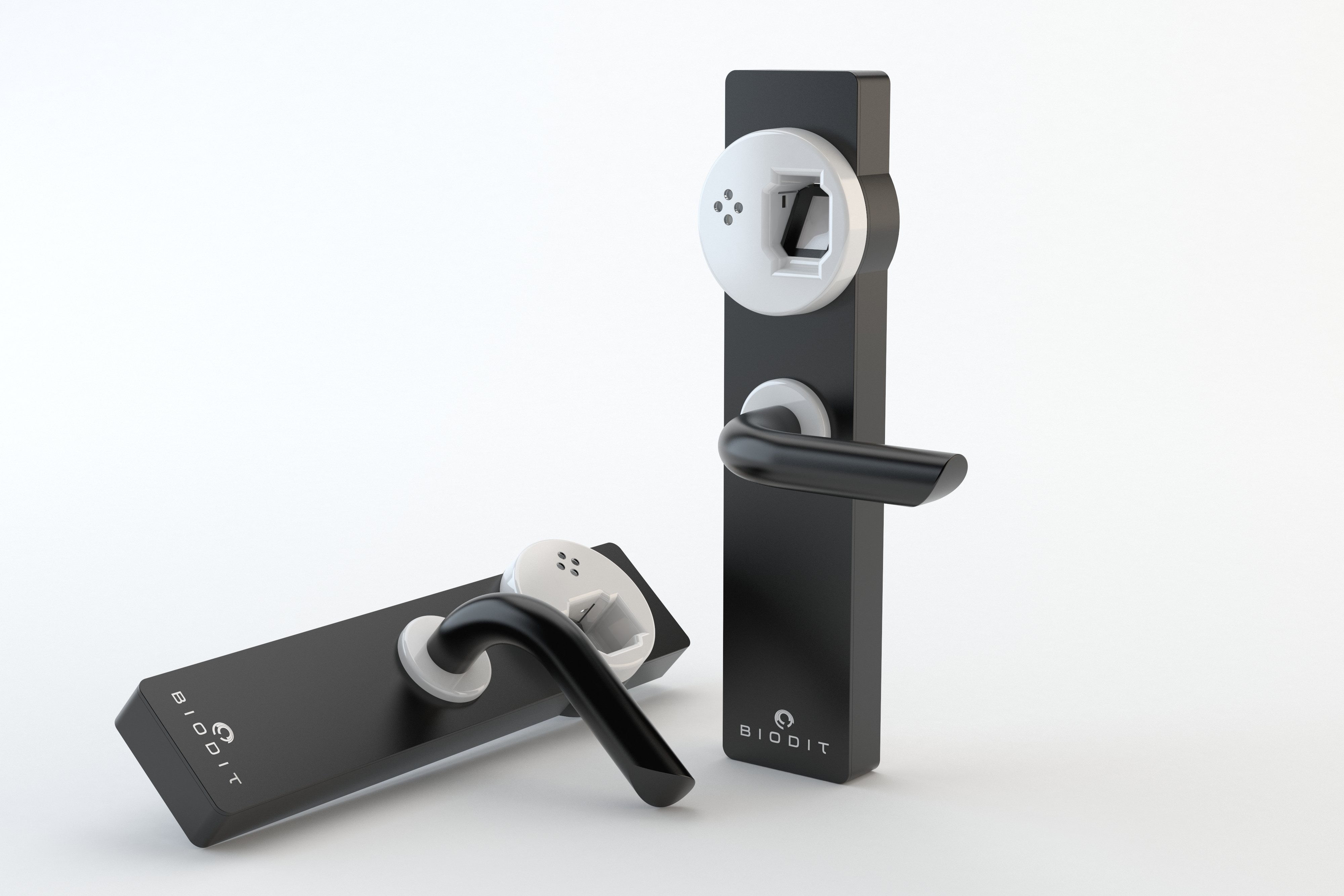

Olock® is an innovative wireless biometric device for access control. It provides quick and easy access of users to different rooms through accurate identification of a fingerprint, without the need for keys, magnetic cards, passwords, etc., which can be stolen, lost, broken or forgotten.

Olock® is connected to the management software control and other network devices using the Wireless Biometric Locking System® (WLBS®), based on a Zigbee platform.

This connectivity simplifies installations, taking advantage of common computing resources and facilitating the installation of the product without any need of building works or wiring.

MAIN CHARACTERISTICS

TECHNICAL FEATURES

Fingerprint biometrical identification technology.
Attractive design in different finishes and colours.
Simple installation without cabling, for new or already exiting constructions.
Compatible with different door thicknesses from 30 to 115 mm.
Compatible with ANSI embedded locks. Available version for
cylinder ( input of 60mm or more, follower lever of 8mm. If
cylinder is used, distance between axes of 85mm)
Bidirectional wireless communication between the control
software and the Olock device.
Safety in the wireless communication on all kind of devices,
coded wireless communication with safety verifications per
cyclical redundancy codes and safety safety algorithms.
Anti-panic function, the lock can always be opened from inside
by using a suitable embedded lock.
Restraint fingerprint function.
Sound warning by buzzer on access
Visual warning with red and green leds on access.

Opening Modes

– Identification mode (door opening after fingerprint validation).
– Clearance mode (free clearance).
– Access mode by time band.
– Remote opening.
– Emergency opening (through PPD controller)

Information provided through control software

– Detailed reports on the locks’ activity.
– Maintenance reports.
– Online monitoring of the status of the batteries at any time.
– Automatic incidence messages.
– History of identification events per user.
– Access permissions per groups of users (staff or clients).
– Elimination of access on request (fingerprint detection locally)
– Staff access follow-up.
– Open/closed door notification (only if provided with external sensor).

Biometric features

Optical sensor.
Area of the sensor: 18 x 22 mm.
Resolution: 500dpi.
Authentication times (1:1): less than 1 second (standard time).
Identification Times (1:500 people): 1.5 seconds.
Maximum number of fingerprints per Olock®: 500 (extendable
to 3000 and 5000).
FAR <=0.00001%.

Environmental characteristics

– Operating temperature: -10ºC to 45ºC.
– Storage temperature: -20ºC to 70ºC.
– Relative humidity: 20% to 80%.

Autonomy

– Necessary power supply: Pack of lithium batteries of 3.6Vdc.
– Number of openings: Between 40,000 and 50,000.
– Low consumption, the device will remain on standby, the sensor will
activate when you lower the handle.

Interfaces

– Digital input for external sensor

Network and communications

– WBLS Wireless communication with the rest of the network devices.
– Possibility of ONLINE and OFFLINE operation

Installation

– For interiors and covered exteriors.
– On doors with through screws.

Download datasheet
