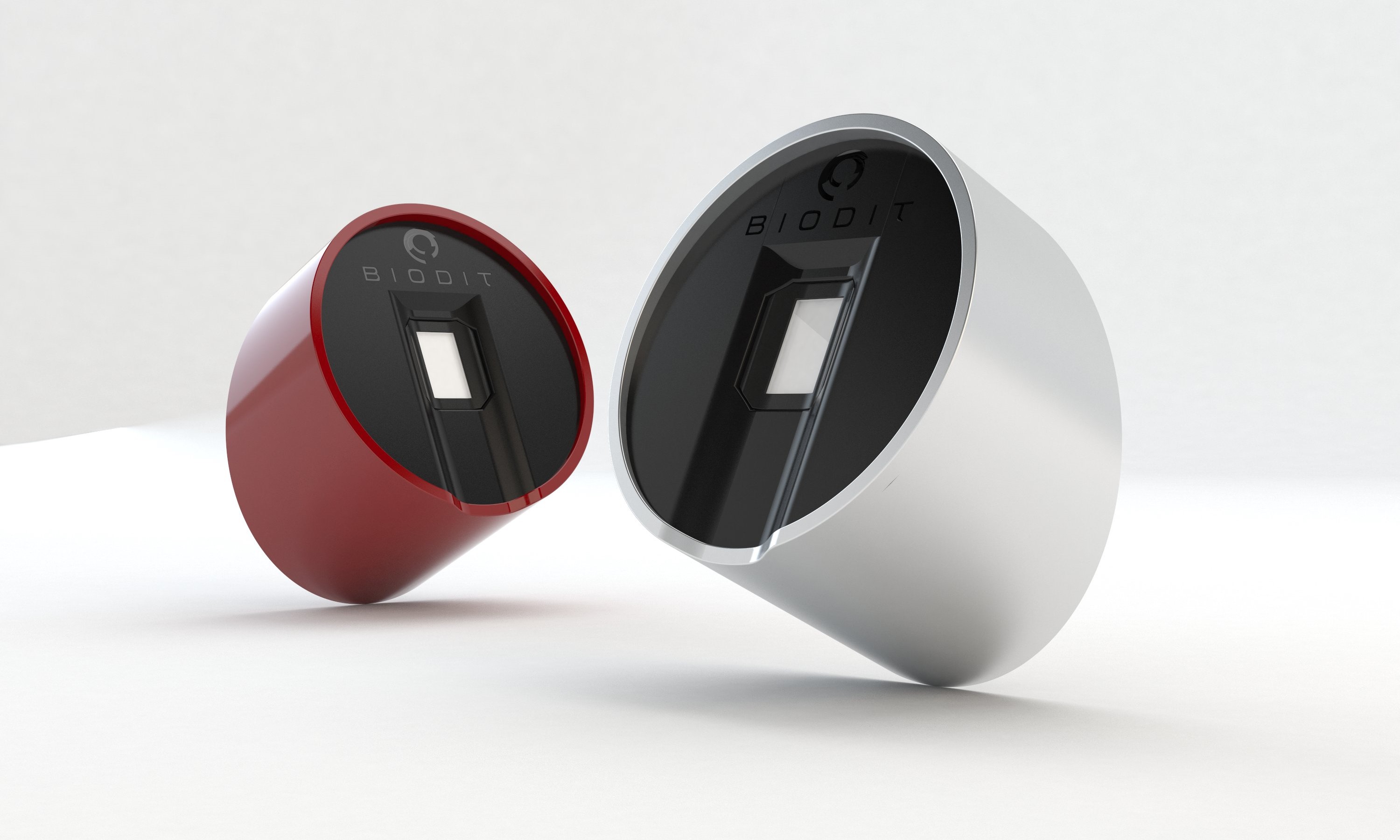

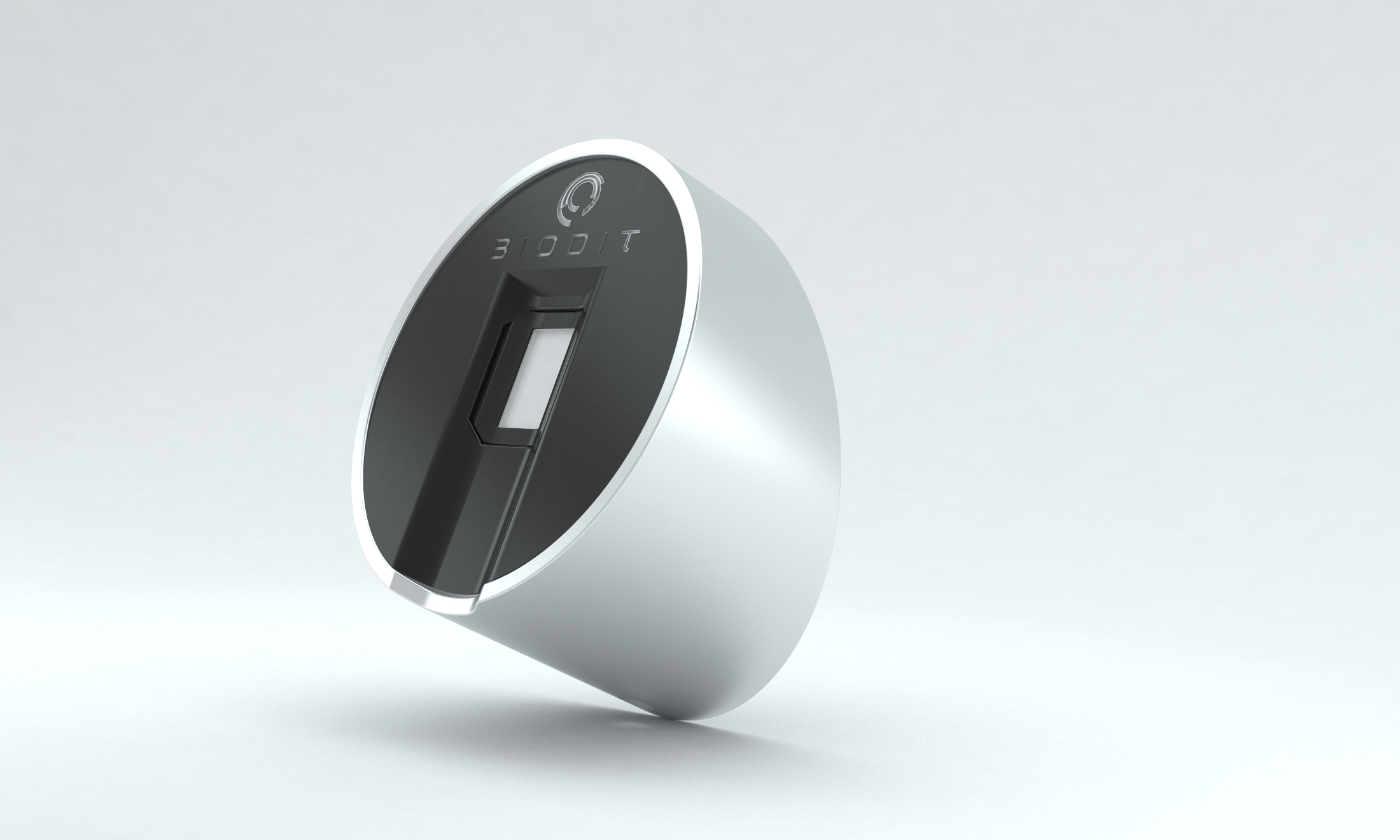

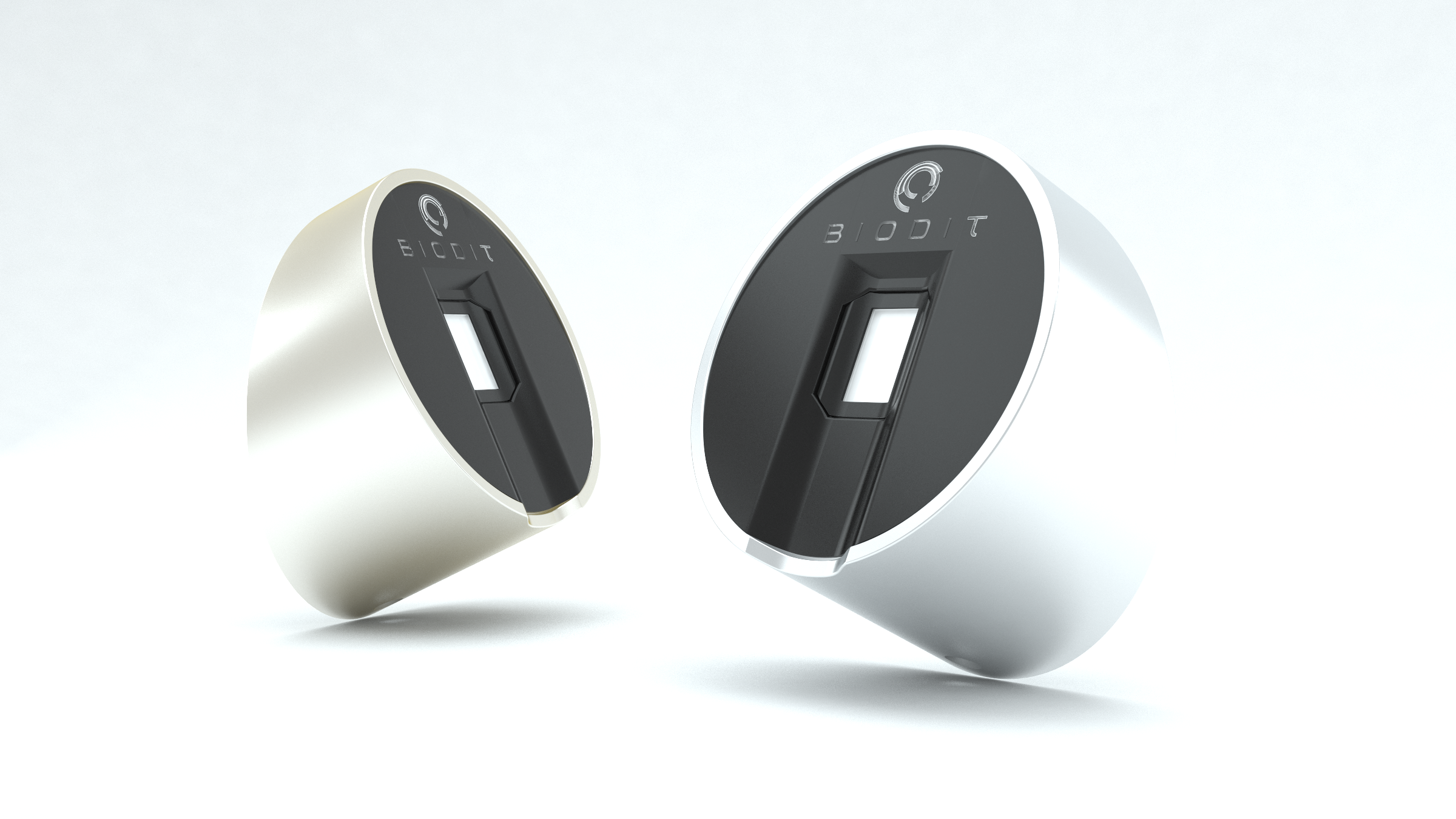

Conik®Access Wall

Biometric reading unit
Design and functionality in one single product

– Fingerprint biometrical identification technology.
– Surface installation on walls.
– Simple installation for all types of construction.
– High safety device with cabled connection through the data bus.

Overview

Conik®Access Wall is is a biometric device for access control. The device is designed for wall mounting, providing quick and easy access of users to different rooms through fingerprint identification.

Thanks to its cutting-edge design Conik®Access Wall is applicable to any interior. Connected to the network controller provides maximum security and effective control in areas of high priority .

The connection between Conik®Access Wall and Biodit Management Software is done through DriverControl® via RS485 interface with a maximum distance of 1 km.

MAIN CHARACTERISTICS

TECHNICAL FEATURES

– Attractive design in high quality material.
– Fingerprint biometrical identification technology.
– Simple installation with just one UTP CAT5 cable.
– Range of the UTP cabling for data bus of up to 1Km*.
– Encrypted communication between the reading unit and the control unit through 485 bus.
– Surface installation on walls.
– For covered exteriors.
– Requires connection to a control unit such as Relay Switch or Driver Control.
– Compatible with any control unit and on ONLINE or OFFLINE mode.
– Sound warning by buzzer on access.
*for distances greater than 25m it will require external power supply

Autonomy

– Required power supply: Through the data bus for distances of up
to 25m. Requires 3.6Vdc 500mA external power supply for greater
distances.

Interfaces

– External power supply connector. Removable terminal type connector.
– Auxiliary connector, Removable terminal type connectors.
– RJ45 connector for bus connection with the control unit.

Biometric features

– Optical sensor.
– Area of the sensor: 18 x 22 mm.
– Resolution: 500dpi.
– Authentication time (1:1): Less than 1 second (standard time).
– Identification time (1:500 people): 1.5 seconds.
– Maximum number of fingerprints per Conik WaLL® device: 500
(extendable to 3000 and 5000).
– FAR <=0.00001%.

Environmental characteristics

– Operating temperature: -10ºC to 45ºC.
– Storage temperature: -20ºC to 70ºC.
– Relative humidity: 20% to 80%.

Network and communications

– Communication through the 485 bus.
– Possibility of ONLINE and OFFLINE operation.

Installation

– For interiors and covered exteriors.
– Surface
